Hi-Temp Cartridge Heaters

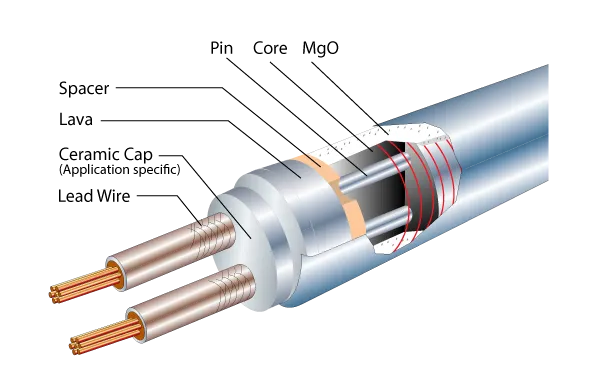

TUTCO Cartridge heaters are high watt density heaters that provide excellent heat transfer efficiency and up to 100 W/in2 with high operating temperatures. The Hi-Temp Cartridge is made to withstand a sheath temperature of up to 1400°F (760°C), internally up to 1600°F (871°C). Its swaged construction allows for minimal air gaps, providing superior heat transfer and resistance to impact and vibration. Dual voltage and three phase options are available on selected diameters.
Features & Benefits
- High watt density rugged construction
- Efficient dissipation of heat
- Use in distributed wattage systems
- Many voltage variations and power options
- Wide-range of diameters

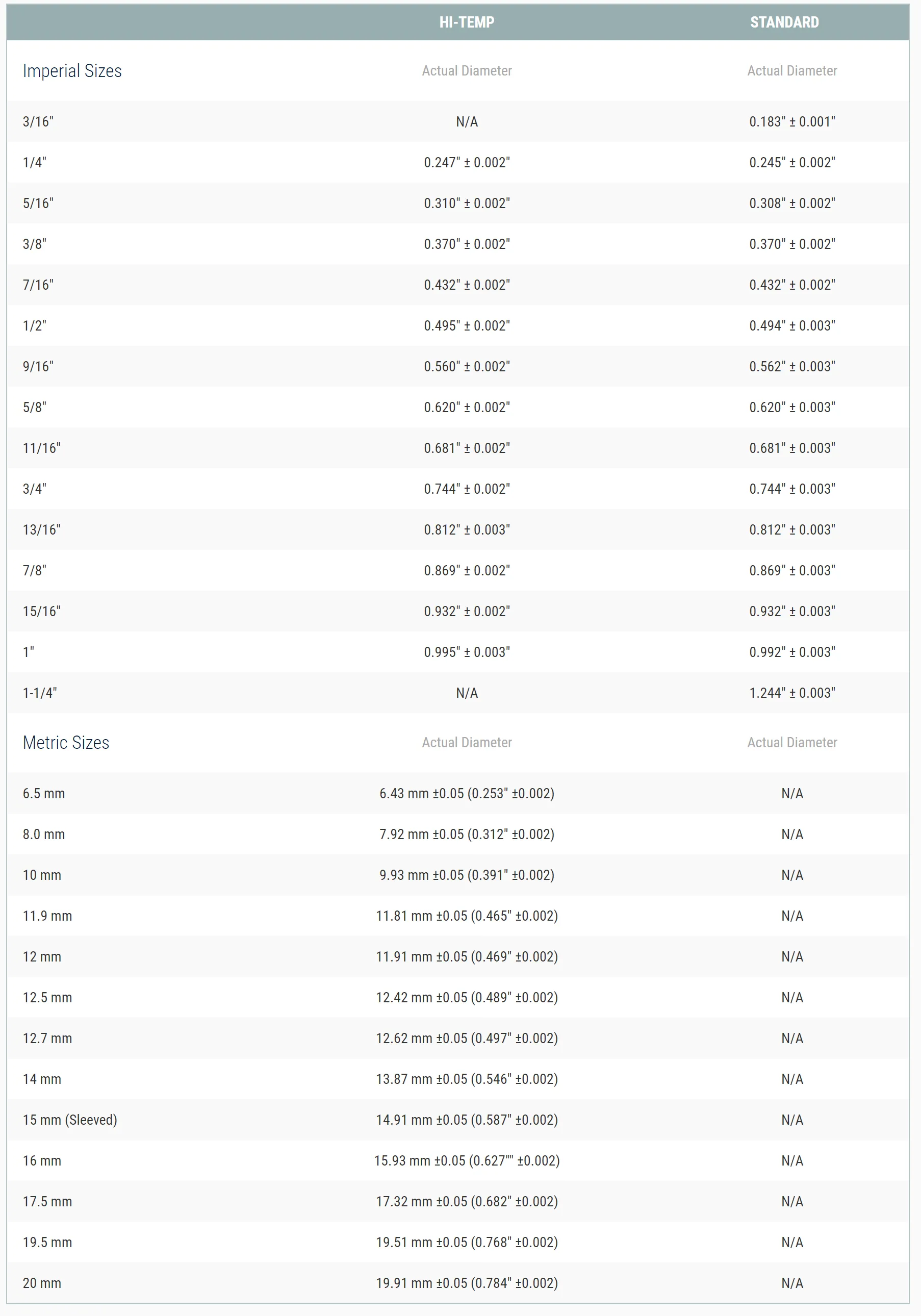

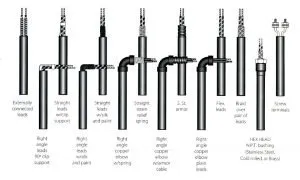

- Many termination styles – see below
- CSA and UL recognized (where applicable)
- High quality Nickel-Chromium connections provide consistent junctions and termination
SPECIFICATIONS
- Max Watts/sq. in.45 Watts/sq. in.
- Max Sheath Temperature1000ºF (538ºC)
- SheathStainless Steel
- Wattage Tolerance+5% – 10%*
- based on NEMA standards
- Resistance Tolerance+10% – 5%** based on internal operating temperature,
8.5% lower at room temperature for standard heaters
and 3.3% lower for Hi-Temp heaters. - Standard Voltages120V, 240V & others.
- Many others available upon request
Heat Transfer
Thermodynamics, specifically heat transfer, is used throughout our daily lives, but not always thought of. A common practice of cooking breakfast would be one simple example. You place one type of media, your frying pan, onto a hot surface and apply the “heat”, which is your source of energy, to cook the food. The heat […]
Customize Your Cartridge Heater

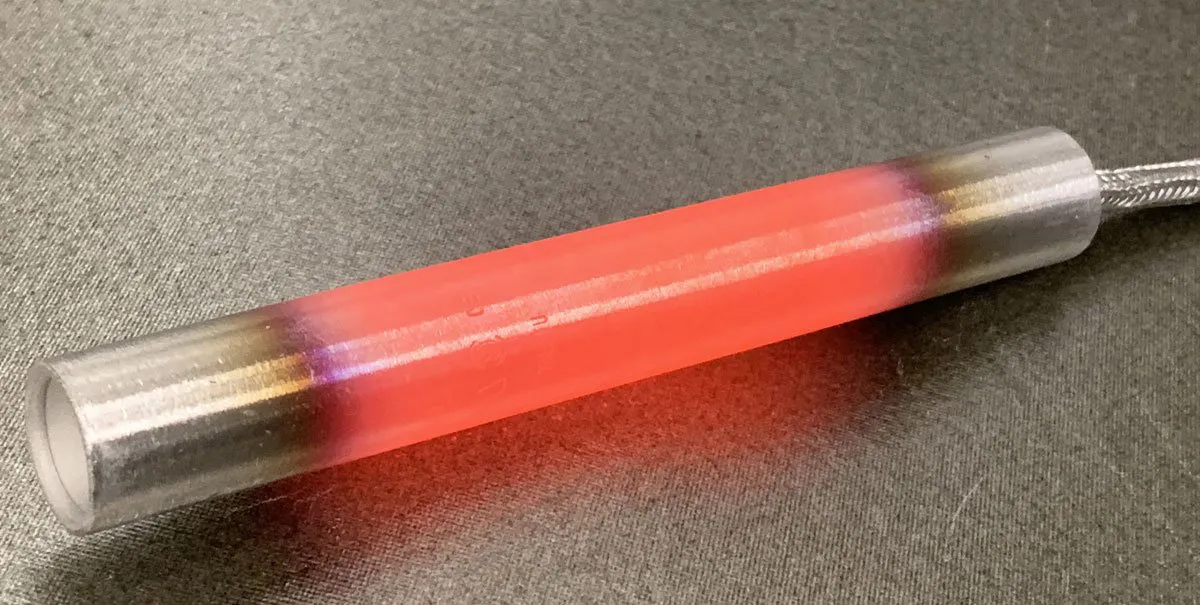

Customize for a Competitive Edge Electric heaters come in all shapes and sizes. One of the most popular is the cartridge heater, which can be described generically as a round tube with leads exiting typically at one end that, when attached to an electrical source, produces heat. Selecting a cartridge heater is no different than selecting […]
Cartridge Heaters: Heater and Hole Fit
Cartridge Heaters can be a great choice for many applications that require heat. If used and controlled properly, cartridge heaters can provide a long-term solution for many conductive process heating applications. When using a cartridge heater for your application, there are two key factors to ensure optimal results: Make sure the heater is sized correctly […]
Cartridge Heaters: Heating Liquids

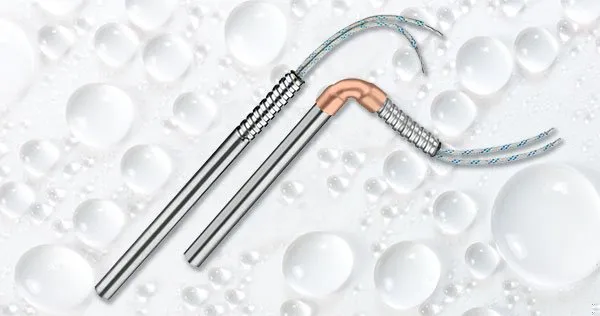

In this article, we discuss heating liquids and the wattage requirements for heating various materials. If used and controlled properly, cartridge heaters can provide a long-term solution for many conductive process heating applications. Make sure that the heater will always be surrounded by the liquid you are heating. The liquid acts as the heat sink […]
Cartridge Heaters: Minimizing Failures
There are several bad things you can do to a cartridge heater (any heater actually) that may damage it or shorten its life. In this installment of Ask Ian, we look at heater abuse and things to avoid. Don’t let contamination get onto a heater, especially near the lead-wires or screw terminals. Even a dry […]
Increasing Conductive Heater Element Life
Does continuous operation shorten heater element life? It’s a common question, and frankly, the answer is yes. All heating wire will eventually fail over time, but it is possible to improve the life of the heater by following these recommendations. All heater types require a balance of cooling and voltage control to avoid overshoot failures. […]
