Strip HeatersMade in the USA

Tutco manufacturers a variety of customized strip heaters. Strip heaters can be used in a variety of applications from food warming, heating enclosures, and OEM packaging machinery.  Tutco Strip Heater product families include our Ultima, HT Mica, Permaheat and Ceramic. Each of these product familes provide excellent heat transfer and reliable safe operation.

Higher Watt densities and custom features are available. Please contact the factory for more detailed information on the application and custom specifications.  The specifications below are for our standard strip heater solutions.

 Ultima Strip Heaters:

  • Durable tubular heating element encased in a stainless steel sheath
  • Designed to withstand corrosive environments
  • High temperatures up to 1200°F ( 648°C )
  • Maximum 40W/in2

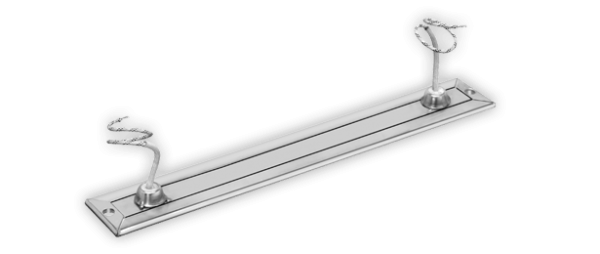

HT Mica Strip Heaters:

  • Resistive ribbon based based design with high quality mica insulation
  • Durable contruction with welded attachments
  • High temperatures up to 900°F ( 482°C )
  • Maximum 40W/in2

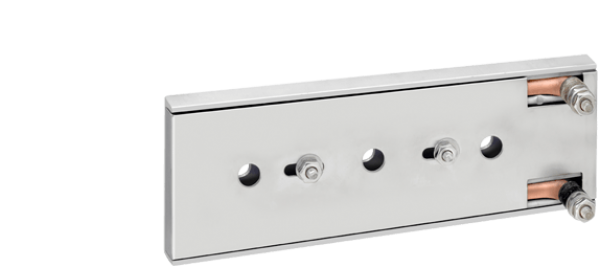

Permaheat Strip Heaters:

  • Durable tubular heating element encased in a heavy duty aluminium base and stainless steel cover plate
  • Rugged construction with excelent heat transfer
  • High temperatures up to 600°F ( 316°C )
  • Maximum 35W/in2

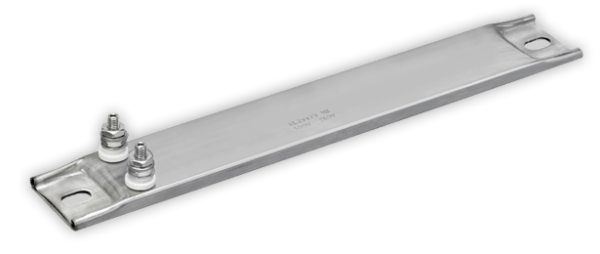

Ceramic Strip Heaters:

  • Large selection of sizes and lengths
  • Durable stainless steel sheath construction and a nickel-chrome wire coil with ceramic insulation
  • High temperatures to 700°F ( 371°C )
  • Maximum 40W/in2

For more details please select from the solutions below and use our Tutco Strip Specs tool for custom quotes.  Expedited delivery options are available for quantities as low as 1 piece.

Strip Heaters image
Custom Quote

Design & spec your strip heater online in 5 easy steps. Save and revise your configurations and submit them for quoting. Click here to configure your heater.

Operating Temp Capability 1200°F
Max. Watts per Square Inch 40
Durability Excellent
Operating Temp Capability 900°F ( 482°C )
Max. Watts per Square Inch 40
Durability Good
Operating Temp Capability 600°F
Max. Watts per Square Inch 35
Durability Excellent
Operating Temp Capability 700°F
Max. Watts per Square Inch 40
Durability Good
