Band Heaters

Conductive

Band Heaters

TUTCO offers a variety of band heaters to accommodate any cylindrical application. TUTCO’s product offering ranges from the HT Mica Band using mica and sheath materials for your  applications, to the MI Better Band used in often the plastics extrusion industry and other industrial applications needing a high temperature reliable solution.

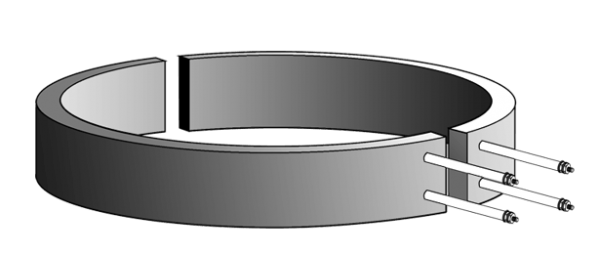

Cast Band Heaters
Cast Band Heaters

The cast heater is the toughest band available; it can withstand most rough handling, shock and vibration without failure. The heating element is completely isolated from the outside of the band, so it can withstand almost any type of contamination and can reach temperatures up to 1400°F (760°C).

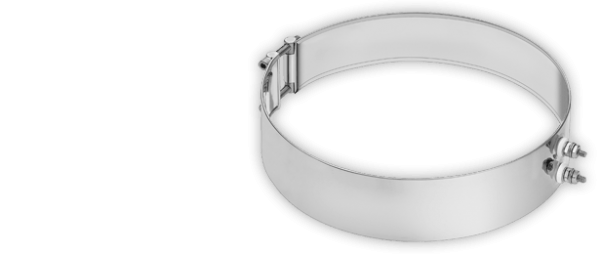

HT Flex Band Heaters
HT Flex Band Heater

TUTCO’s HT Flex Band Heater deliver up to 1400°F (760°C) in a one-piece design engineered to flex over the barrel diameters. Unlike conventional rigid designs, the HTFlex Band allows for installation and removal from any point along the barrel without the need to remove or even disturb other heaters and equipment mounted to the barrel.

HT Mica Band Heaters
HT Mica Band Heaters

The TUTCO HT Mica Band is the ultimate combination of high temperature performance and flexibility operate at temperatures up to 1400°F (760ºC). Available with a wide range of heater body and termination customizations.

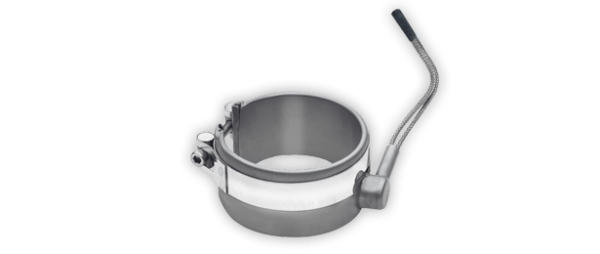

MI Mineral Insulated Band Heaters
MI Mineral Insulated Better Bands

The TUTCO MI Better Band, with Alumina Oxide insulation and welded stainless steel sheath, offers a high watt density of 80W/in2 Max and 480V MAX (AC or DC). It is built with very high quality materials and based on application can maintain temperatures as high as 1400ºF (760ºC).

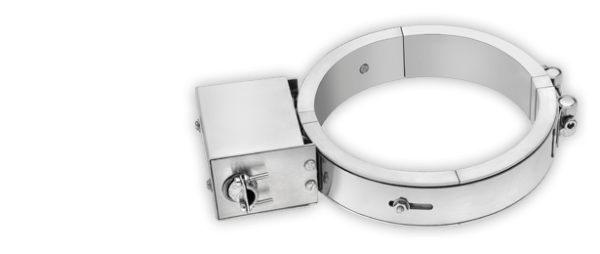

Permaheat Band Heaters
Permaheat Band Heaters

Our durable Permaheat Band heater uses a tubular heating element to provide excellent heat transfer and is ideal for low to medium temperatures up to  600°F (316°C). The Permaheat Band offers resistance to contamination and its aluminum body allows for better conformity to slightly irregular diameters.

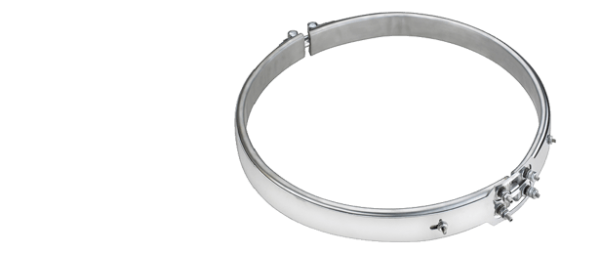

Ultima Band Heaters
Ultima Band Heaters

The Ultima Band heater is one of the most rugged products on the market. Its tubular heating element enables the Ultima to provide uniform heat at medium to high temperatures up to 700°F (371°C), while resisting contamination, corrosion and vibration.
