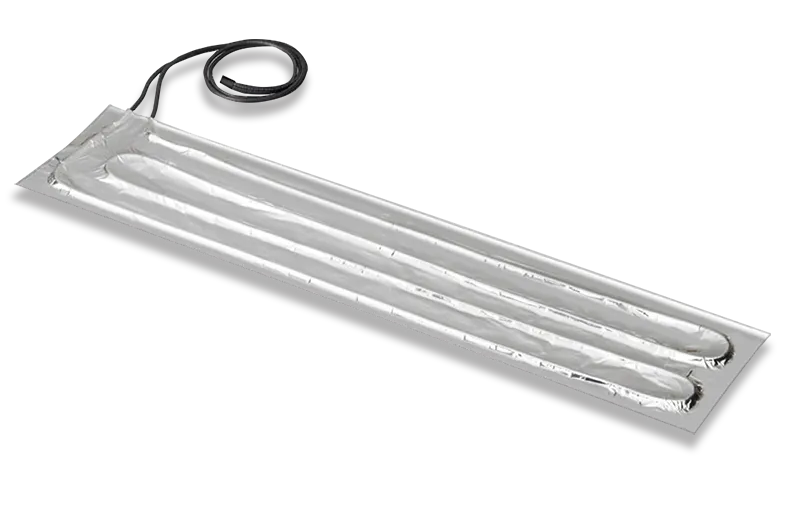

Foil Heaters

This is high temperature silicone resistor core wrapped around inside an outer foil jacket. Typical operating power is 4.5W/inch of resistor core.

Foil Heaters are primarily used for warming applications where an economical surface heater is required.

Maximum Temperature Rating is 325°F. Maximum Watt Density is typically 5 W / in², but can be higher based on application

Get A Quote

Features & Benefits

  • Easy to Install (when ordered with the adhesive backing)
  • Economical
  • Customized shapes available
  • Low mass means fast heat-up time

Applications include:

  • Incubators
  • Evaporators
  • Battery Warmers
  • Food Warmers
  • Laboratory Warmers
  • Foil Heaters are constructed with a resistive heating element cable sandwiched between two thin sheets of aluminum.
  • The resistive heating element cable consists of a nichrome wire wrapped around a fiberglass core which is embedded in a silicone extrusion. This element is designed to fit the area required, and placed between two layers of aluminum foil.
  • Available with an adhesive backing for easy installation.
  • Most foil heaters are rectangular, but can be manufactured to any custom shape with holes and cutouts. Thermostats and thermal fuses can be embedded in the heater for additional control.
  • Leadwire supplied is Teflon™ coated, unless otherwise specified.
